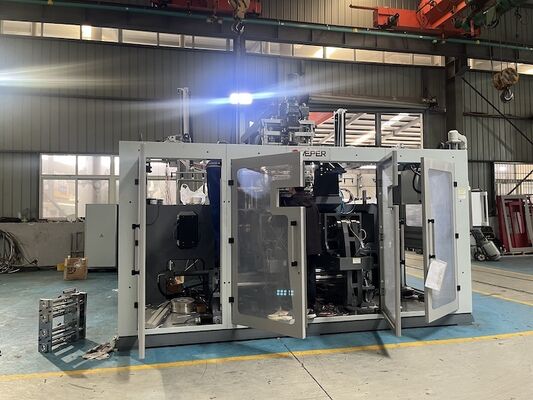

Automatic Extrusion Molding Machine with 40 Sets of Mould Data Memory
Product Overview
The MP plastic blow molding machine is engineered for manufacturing diverse plastic hollow products from high molecular materials. It efficiently produces hollow items ranging from 5 milliliters to 100 liters in capacity.
This versatile machine creates bottles, pots, jars, barrels, toys, tool boxes, furniture components, and automotive parts. Compatible with PE, PP, PVC, PA, PC, PS, and EVA materials, it ensures excellent processing performance and consistent high-quality output.
Key Features
- Variable frequency motor for adjustable screw rotation speed
- High slenderness ratio screws with strong plasticizing capabilities
- Computer-controlled resistance heaters for fast, stable, uniform heating
- Combined extrusion system for multi-layer products and visible strip lines
- Toggle type mould clamping with linear guide system and double station design
- Improved hydraulic oil circuit for power savings and stable performance
- Removable mobile oil tank for convenient maintenance
- Computer control system with double proportional hydraulic control
- Automatic fault alarm and data storage for 40 mould configurations
- Manual, Semi-Automatic, and Fully Automatic operation modes
- Safety door with electrical and mechanical safety devices
- Straight cutting and oblique cutting blowing functions
Technical Specifications
Basic Specifications
| System | Item | Unit | Parameter |
|---|
| Basic Specifications | Applicable Materials | | PE, PP |
| Max Product Volume | L | 10 |
| Number of Heads | SET | 3 |
| Machine Dimension (L*W*H) | m | 3.5 * 5.6 * 2.65 |
| Machine Weight | Ton | 15 |
Mould Clamping System
| Item | Unit | Parameter |
|---|
| Mould Clamping Force | kN | 200 |
| Platen Opening Stroke | mm | 240 - 640 |
| Plate Stroke | mm | 750 |
| Max Mould Size (W * H) | mm | 700 * 420 |
Extrusion System
| Parameter | Unit | 100 mm | 75 mm | 75 mm | 25 mm | 25 mm |
|---|
| Screw Diameter | mm | 100 | 75 | 75 | 25 | 25 |
| Screw Slenderness Ratio (L/D) | | 26 | 24 | 24 | 22 | 22 |
| Plasticizing Ability (HDPE) | kg/h | 218 | 75 | 75 | 3 | 3 |
| Screw Heating Stages / Zones | Zone | 4 | 3 | 3 | 2 | 2 |
| Screw Heating Power | kW | 17.4 | 12.6 | 12.6 | 1.4 | 1.4 |
| Screw Fan Power | kW | 0.56 | 0.28 | 0.28 | | |
| Extrusion Motor Power | kW | 55 | 22 | 22 | 1.5 | 1.5 |
Energy Consumption
| Item | Unit | Parameter |
|---|
| Total Machine Power | kW | 210 |
| Oil Motor Power | kW | 31 |
| Air Pressure | MPa | 0.6 - 1 |
| Compressed Air Volume | m³/min | 1.2 |
| Cooling Water Volume | L/min | 1000 |
Applications
This versatile solution manufactures diverse hollow plastic items across multiple industries:
- Bottles and containers for everyday use
- Chemical barrels for industrial liquid storage
- Durable toolboxes and industrial components
- Automotive parts meeting rigorous standards
- Toys and household goods prioritizing safety
- Furniture components including chairs and boards
Frequently Asked Questions
Q: What is the brand and model number of the Extrusion Blow Molding Machine?
A: The Extrusion Blow Molding Machine is branded MEPER, model MP 100 FD.
Q: Where is the MEPER MP 100 FD machine manufactured?
A: This machine is manufactured in China.
Q: What certifications does the MEPER MP 100 FD have?
A: The machine is certified with CE and ISO9001:2008 standards.
Q: What is the minimum order quantity and price terms?
A: Minimum order quantity is 1 set with negotiable pricing.
Q: What are the packaging and delivery details?
A: Standard export packaging with wooden pallet (wooden case optional). Delivery time is 25-35 work days.
Q: What payment terms and supply ability does MEPER offer?
A: Payment terms: L/C and T/T. Supply ability: 100 sets per month.
