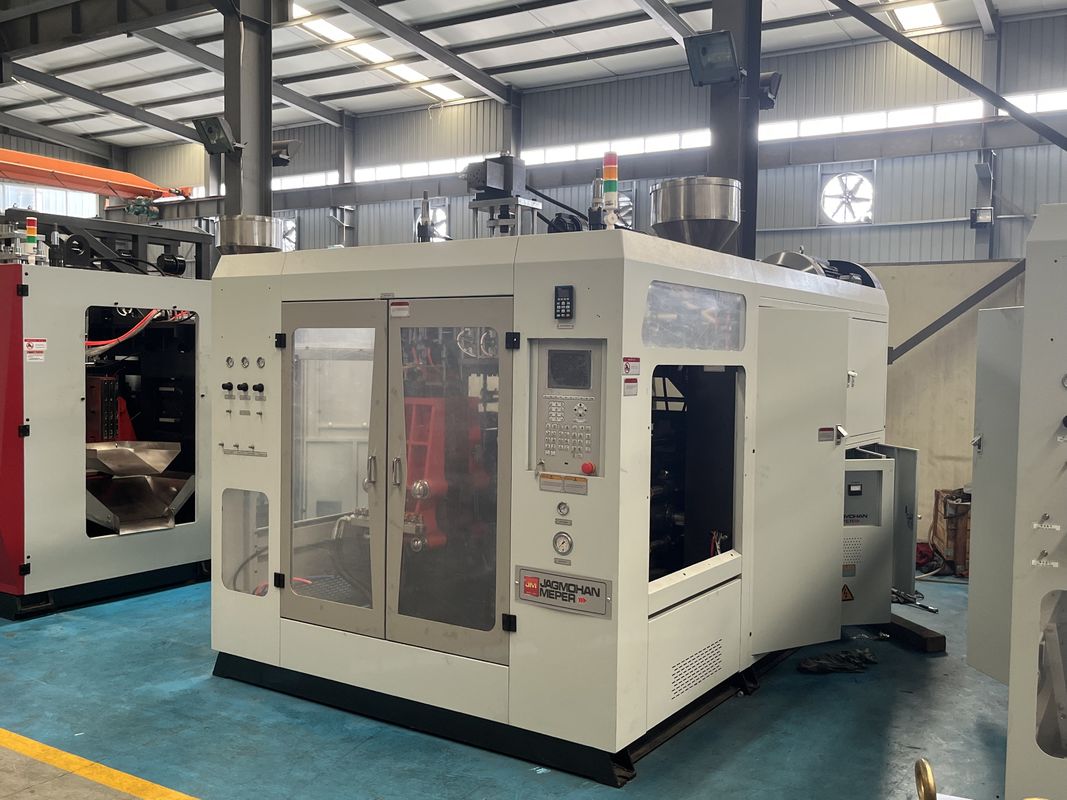

Cosmetics 5L Extrusion Blow Molding Machine for PP PE

Large Image : Cosmetics 5L Extrusion Blow Molding Machine for PP PE

Product Details:

Place of Origin:	CHINA
Brand Name:	MEPER
Certification:	CE/ISO9001:2008
Model Number:	MP70D-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Price negotiation
Packaging Details:	Standard export package wooden pallet(standard) wooden case(optional)
Delivery Time:	25-35 work days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Container Capacity:	Customize Size	Defleshing System:	Yes
VIew Strip:	Yes	Fast Cycle:	Yes
PLC:	Techmation	Type:	Tie Bar
Highlight:	PP PE extrusion moulding machine , 5L Extrusion Blow Molding Machine , Cosmetics Blow Molding Machine

Double station extrusion blow moulding machine max production volume 5L model MP70D-1 for Disinfectant Products

Brief introduction

MP70D Adopt hydraulic system drive,linear transducer movement for carriage up and down,fully automatic lubrication system with self-detector function.This model is popular use for small products below 5L.

Leading Manufacturers:

Bekum (Germany) – Heavy-duty and high-speed EBM machines.
Kautex (Germany) – Known for automotive and industrial blow molding.
Jomar (USA) – Reliable mid-range machines.
Tech-Long (China) – Cost-effective solutions.
Shibaura Machine (Japan) – Precision EBM systems.

PARAMETERS	MP70D-1 φ70
SPECIFICATIONS
material	PP.PE
MAX container capacity L	5
number of die Set	1
machine dimension(L×W×H) M	3.6×2.2×2.36
total weight Ton	5.5
CLAMPING
clamping force KN	90
platen opening strokes mm	180-480
toggle stroke mm	300
Max mould size(W×H) mm	430×370
EXTRUDER UNIT
screw diameter mm	70
screw L/D ratio L/D	24
(HDPE)plasticizing capacity kg/h	75
screw heating zone zone	3
screw heating power kw	12.7
fan power kw	0.28
extruder driving power kw	18.5
DIE HEAD
die head heating zone zone	3
power of die heating kw	8
ENERGY-CONSUMPTION
power of the electric motor kw	9.5
air pressure Mpa	0.6-0.8
total power of machine kw	48.98
average energy consumption kw	24
compression air consumption m3/min	1
cooling water consumption L/minv	30

Advantage:

1. Most important for a good EBM machine is the action system and the extrusion system.

we'r using powerful hydraulic system design with imported valve and pump for stable action

Adopt China famous brand Gearbox along with Delta extrusion motor ,make sure machine runs continiously,long life

2. Heavy and stong structure,make sure machine works more faster and stable.

3. Special care for different countries.

we offer some special design for different countries,in order to matching best performance.

4. Defleshing function included

Cosmetics 5L Extrusion Blow Molding Machine for PP PE 0

Cosmetics 5L Extrusion Blow Molding Machine for PP PE 1
