Product Description:
One of the most notable features of this plastic container blowing machine is its in-mould labeling capability. This feature adds value to the finished product by allowing for high-quality labeling during the molding process. This feature saves time and reduces the cost of labeling after the production process.
The Clamping Type of this blow molding machine is a K Series Tie Ba, which ensures a stable and precise clamping force. This type of clamping mechanism ensures that the plastic container blowing machine produces high-quality containers with a consistent thickness and size.
The Extruder Motor Power of this plastic container blowing machine is 7.5kW, which is powerful enough to handle various materials effectively. This power ensures that the machine can produce plastic containers with a high output rate, making it suitable for mass production.
In summary, the Plastic Bottle Blow Molding Machine is an excellent choice for businesses that require a reliable and efficient blow molding machine for plastic containers. Its in-mould labeling feature, K Series Tie Ba clamping type, and 7.5kW extruder motor power make it a versatile and efficient machine that can handle different materials. Its triple color feature also ensures that the finished product is not only functional but also aesthetically pleasing. Invest in this plastic container blowing machine today and take your production process to the next level.
Features:
- Product Name: Plastic Bottle Blow Molding Machine
- System: Parison Control System MOOG
- Automatic Grade: Automatic
- Color: Triple
- Container Capacity: 1L
- Extruder Motor Power: 7.5kW
This Plastic Bottle Blow Molding Machine is a high-quality blow molding equipment for plastic bottles. It features a Parison Control System MOOG which allows for precise control over the shape and size of the bottles being produced. The machine is fully automatic and has a triple color capability, making it perfect for producing high-quality, multi-colored bottles. With a container capacity of 1L and an extruder motor power of 7.5kW, this bottle blowing machinery is a reliable and efficient option for any production line.
Technical Parameters:
1.2 Major technical parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
4x2.3x2.5 |
| Machine weight |
TON |
8.2 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
220-620 |
| Plate stroke |
MM |
540 |
| Max mould sizes(WxH) |
MM |
520x460 |
| |
|
Extrusion system
|
Screw diameter |
MM |
80 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
15.85 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
30 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
3 |
| Head heating power |
KW |
10 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| Oil motor power |
KW |
18.7 |
| Air pressure |
MPA |
0.6-0.8 |
| Compression air volume |
M3/min |
1.5 |
| Cooling water volume |
L/min |
40 |
Applications:

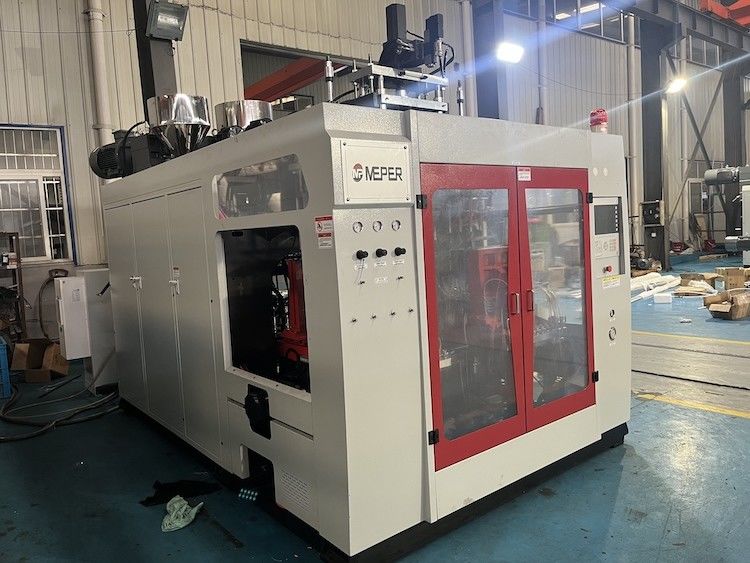

MEPER MP80D is an automatic bottle blowing machine widely used in the manufacturing of plastic containers. It is engineered to deliver high-quality plastic bottle molding equipment that meets international standards. This product is manufactured in China under strict quality control measures and certified by CE/ISO9001:2008.
The MEPER MP80D is designed to meet industrial demands and is suitable for small and medium production lines. With a minimum order quantity of one set, buyers can negotiate the price and expect delivery within 25-35 working days. The packaging is done using standard export packages, with an option of wooden pellet or wooden case.
The MEPER MP80D is equipped with a servo system, which makes it highly efficient, precise, and energy-saving. It is capable of producing single or double mold cavity bottles, depending on the requirements. The extruder motor power is 7.5kW, which ensures a high production rate and consistent quality.
The MEPER MP80D is a D-type blow molding machine with in-mold labeling (IML) capability. This feature allows for the simultaneous injection of the label and plastic material, which enhances the production process, reduces waste, and improves quality. This makes it ideal for product application occasions and scenarios that require high-quality labeling such as cosmetics, food, and beverages.
The MEPER MP80D is a versatile blow molding machine for plastic containers, suitable for a wide range of applications. It can be used to produce bottles for various industries, including cosmetics, food and beverage, pharmaceuticals, and household chemicals. Its ability to produce high-quality bottles with in-mold labeling makes it an ideal choice for companies that require attractive and durable packaging for their products.
In conclusion, the MEPER MP80D is a reliable, efficient, and versatile automatic bottle blowing machine that delivers high-quality plastic bottle molding equipment. It is a cost-effective solution for companies looking to improve their production process and enhance their product packaging. With a supply ability of up to 100 sets per month, customers can be assured of timely delivery and support from the manufacturer.
Customization:
MEPER MP80D is certified with CE/ISO9001:2008, ensuring its safety, reliability, and quality. It has a minimum order quantity of 1 set and a supply ability of 100 sets per month. The price is negotiable, and the packaging details include a standard export package with a wooden pellet and a wooden case (optional).
The delivery time for the plastic bottle molding equipment is around 25-35 work days, and the payment terms are L/C and T/T. MEPER MP80D is an excellent choice for businesses looking for a reliable and high-quality plastic container blowing machine.
Support and Services:
The Plastic Bottle Blow Molding Machine is a precision-engineered product that requires regular technical support and services to ensure optimal performance and longevity. Our team of experienced technicians and engineers is available to provide comprehensive support and services that include:
- Installation, commissioning, and training
- Preventive maintenance and repair
- Emergency repair services
- Upgrades and retrofits
- Technical consultations
- Spare parts and consumables
Our technical support and services are designed to minimize downtime, optimize performance, and increase the lifespan of your Plastic Bottle Blow Molding Machine. Contact us for more information on how we can assist you.
FAQ:
Q: What is the brand name of the plastic bottle blow molding machine?
A: The brand name of the machine is MEPER.
Q: What is the model number of the plastic bottle blow molding machine?
A: The model number of the machine is MP80D.
Q: Where is the machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the machine have?
A: The machine is certified with CE/ISO9001:2008.
Q: What is the minimum order quantity for the machine?
A: The minimum order quantity for the machine is 1 set.
Q: What is the price of the machine?
A: The price of the machine is negotiable.
Q: What are the packaging details for the machine?
A: The machine comes with standard export packaging. Optional packaging includes wooden pallet and wooden case.
Q: What is the delivery time for the machine?
A: The delivery time for the machine is 25-35 work days.
Q: What are the payment terms for the machine?
A: The payment terms for the machine are L/C and T/T.
Q: What is the supply ability of the machine?
A: The supply ability of the machine is 100 sets per month.
