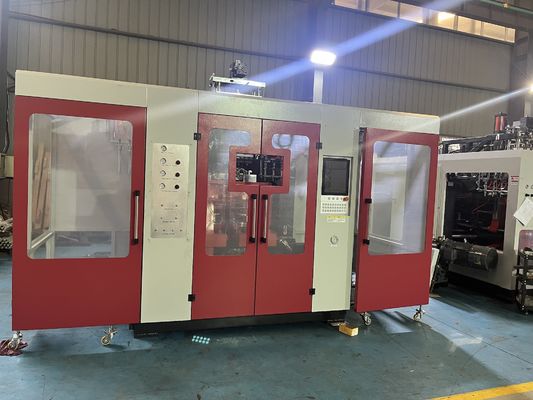

Product Description:
Our Automatic Blow Moulding Machine comes in a customized color that suits your preference and blends well with your workspace. Its sleek and modern design adds a professional touch to your production line.
This machine is ideal for producing milk bottle packing bottles, jerry cans, and other plastic containers. Its versatility makes it a great investment for businesses in the food and beverage industry, chemical industry, and more.
Our Automatic Blow Moulding Machine is equipped with a reliable Schneider contactor, ensuring a stable and safe operation. Its user-friendly interface allows for easy control and monitoring of the production process, giving you peace of mind.
This machine is applicable for HDPE, LDPE, and PP materials, making it a versatile and flexible option for your production needs. Whether you need a bottle blow molding machine or a jerry can blow molding machine, our Automatic Blow Moulding Machine can handle it all.
Invest in our Automatic Blow Moulding Machine and experience a hassle-free and efficient production process. Contact us now to learn more about this product and how it can benefit your business.
Features:
- Product Name: Automatic Blow Moulding Machine
- Warranty Time: 1 Year
- Clamping System: Toggle Type Clamping System
- Contactor: Schneider
- Operation: Automatic
- Applicable Material: HDPE LDPE PP
This fully automatic blow moulding machine is perfect for producing water bottle blow molding and pet bottle blow molding.
Technical Parameters:
| PARAMETERS |
MP80FD φ80 |
| SPECIFICATIONS |
| material |
PE |
| MAX container capacity L |
10 |
| number of die Set |
1,2 |
| machine dimension(L×W×H) M |
3.4×5.6×2.36 |
| total weight Ton |
14 |
| CLAMPING |
| clamping force KN |
150 |
| platen opening strokes mm |
240-640 |
| toggle stroke mm |
400 |
| Max mould size(W×H) mm |
580×470 |
| EXTRUDER UNIT |
|
| screw diameter mm |
80 |
| screw L/D ratio L/D |
24 |
| (HDPE)plasticizing capacity kg/h |
100 |
| screw heating zone zone |
4 |
| screw heating power kw |
15.85 |
| fan power kw |
0.28 |
| extruder driving power kw |
30 |
| DIE HEAD |
|
| die head heating zone zone |
3 |
| power of die heating kw |
10 |
| ENERGY-CONSUMPTION |
|
| power of the electric motor kw |
29 |
| air pressure Mpa |
0.6-0.8 |
| total power of machine kw |
85.13 |
| average energy consumption kw |
42 |
| compression air consumption m3/min |
1.2 |
| cooling water consumption L/minv |
80 |
This plastic blow moulding machine is a fully automatic blow moulding machine designed for producing milk bottle packing bottles. It uses extrusion blow moulding technology and has a toggle type clamping system. It has four cavities and can be used with HDPE, LDPE, and PP materials. The machine comes with a Schneider contactor and has a one-year warranty.
Applications:
The MP75AE is an extrusion blow molding machine that is suitable for blow molding HDPE, LDPE, and PP materials. The machine features a toggle type clamping system that ensures stable and accurate clamping force, making it ideal for high-volume production. The machine's color can be customized to match the customer's preference.
The MP75AE is designed for use in various product application occasions and scenarios. For instance, it can be used to produce water bottles, soda bottles, juice bottles, and other beverage bottles. The machine can also be used to produce shampoo bottles, detergent bottles, and other similar products.
The MP75AE has a minimum order quantity of 1 set, and its price is negotiable. The machine comes with standard export packaging, and its delivery time is between 25-35 work days. The machine can be paid for using L/C or T/T, and it has a supply ability of 100 sets per month.
Overall, the MEPER MP75AE Automatic Blow Moulding Machine is a reliable and efficient machine that can be used in various product application occasions and scenarios. Its extrusion blow molding technology, combined with its toggle type clamping system, makes it ideal for producing high-quality pet bottle blow molding machine, water bottle blow molding machine, and other similar products.
