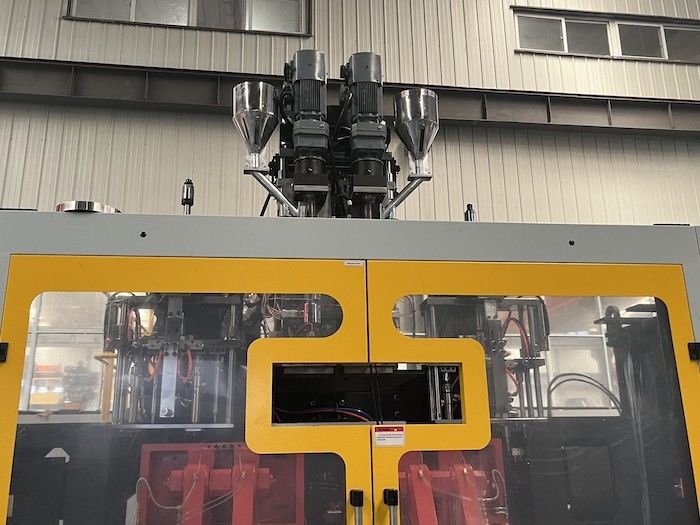

Extrusion Blowforming Machine Customizable Plate Stroke540mm for
Product Description:
Functions
The MP plastic blow molding machine is a specialized piece of equipment that is designed for processing a wide range of plastic hollow products with high molecular weight. Suitable for producing hollow products ranging from 5 milliliters to 100 liters, this machine can create a variety of products such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desktops, chairs, and auto parts, amongst others. Moreover, it’s capable of blowing different materials such as PE, PP, PVC, PA, PC, PS, and EVA, and providing a perfect production process.
This advanced molding machine is an innovative solution to all your plastic molding needs. Its unique features enable it to create a wide range of hollow plastic products with high precision and accuracy. The precise manufacturing process ensures that each product created by MP plastic blow molding machine adheres to the highest quality standards of the industry.
With MP plastic blow molding machine, you can produce numerous hollow plastic products with high efficiency in a short period. Its compact size and optimal design make it a highly efficient and cost-effective machine that is also easy to operate. Its advanced production capabilities allow you to create customizable products that meet your unique product specifications.
Major technical parameters
| System |
Item |
Unit |
Basic Parameter |
|
Basic specifications
|
Applicable materials |
|
PE PP PVC PA… |
| Max product volume |
L |
10 |
| Number of heads |
SET |
1,2,3,4 |
|
Machine dimension
(LxWxH)
|
M |
4x2.3x2.5 |
| Machine weight |
TON |
8.2 |
| |
|
Mould clamping system
|
Mould clamping force |
KN |
150 |
| Platen opening strokes |
MM |
220-620 |
| Plate stroke |
MM |
540 |
| Max mould sizes(WxH) |
MM |
520x460 |
| |
|
Extrusion system
|
Screw diameter |
MM |
80 |
| Screw slenderness ratio |
L/D |
24 |
| Plasticizing ability (HDPE) |
KG/H |
90 |
| Screw heating stage/zone |
Zone |
4 |
| Screw heating power |
KW |
15.85 |
| Screw fan power |
KW |
0.28 |
| Extrusion motor power |
KW |
30 |
| |
|
|
Head
|
Head heating stage/zone |
Zone |
3 |
| Head heating power |
KW |
10 |
| |
|
Energy consumption
|
Total machine power |
KW |
80 |
| Oil motor power |
KW |
18.7 |
| Air pressure |
MPA |
0.6-0.8 |
| Compression air volume |
M3/min |
1.5 |
| Cooling water volume |
L/min |
40 |
Applications:
The MEPER 100 FD Extrusion Blow Moulding Machine is a reliable and efficient machine that is manufactured in China. It is designed to produce high-quality plastic products using the extrusion blow moulding process. This machine is ideal for use in a variety of industries, including packaging, automotive, and consumer goods.
The MEPER 100 FD Extrusion Blow Moulder is suitable for producing a wide range of plastic products, including bottles, containers, and tanks. It has a plasticizing ability of 90KG/H for HDPE material, making it a highly productive machine. The head heating power of this machine is 10KW, which ensures that the plastic is melted evenly and consistently.
This machine is CE and ISO9001:2008 certified, ensuring that it meets the highest standards of quality and safety. The minimum order quantity for this machine is 1 set, and the price is negotiable. The packaging details are a standard export package, with a wooden pallet as standard and a wooden case as an optional extra.
The delivery time for the MEPER 100 FD Extrusion Blow Moulding Machine is 25-35 work days, and the payment terms are L/C and T/T. The supply ability of this machine is 100 sets per month, ensuring that it is readily available for customers.
The machine dimension of the MEPER 100 FD Extrusion Blow Moulder is 4x2.3x2.5m, and it weighs 8.2t. It has a total machine power of 80KW, making it an energy-efficient machine that is cost-effective in the long term.
The MEPER 100 FD Extrusion Blowing Machine is suitable for a variety of application occasions and scenarios. It is ideal for use in the packaging industry for producing plastic bottles and containers for food, beverages, and household products. It is also suitable for use in the automotive industry for producing fuel tanks and other plastic components. Additionally, it can be used for producing plastic toys, furniture, and other consumer goods.
Support and Services:
The Extrusion Blow Molding Machine is a complex piece of equipment that requires expert technical support and services. Our team of skilled professionals is dedicated to providing comprehensive assistance to ensure that your machine operates at peak efficiency. Our technical support services include:
- 24/7 telephone support
- Remote diagnostics and troubleshooting
- On-site service and repair
- Training and education for operators and maintenance staff
In addition to technical support, we also offer a range of services to help you get the most out of your machine:
- Installation and commissioning
- Machine upgrades and retrofits
- Spare parts and consumables
- Preventative maintenance programs
Our goal is to provide you with the highest level of support and service to ensure that your Extrusion Blow Molding Machine is always running at its best. Contact us to learn more about our technical support and services.
FAQ:
Q1: What is the brand of the Extrusion Blow Molding Machine?
A1: The brand name of the Extrusion Blow Molding Machine is MEPER.
Q2: What is the model number of the machine?
A2: The model number of the machine is 100 FD.
Q3: Where is the machine manufactured?
A3: The machine is manufactured in China.
Q4: What certifications does the machine have?
A4: The machine has CE/ISO9001:2008 certifications.
Q5: What are the payment terms for purchasing the machine?
A5: The payment terms for purchasing the machine are L/C and T/T.
Q6: What is the minimum order quantity for the machine?
A6: The minimum order quantity for the machine is 1 set.
Q7: What is the packaging for the machine?
A7: The machine is packaged in a standard export package with a wooden pallet (standard) or a wooden case (optional).
Q8: What is the delivery time for the machine?
A8: The delivery time for the machine is 25-35 work days.
Q9: What is the supply ability of the machine?
A9: The supply ability of the machine is 100 sets per month.
Q10: Is the price negotiable for the machine?
A10: Yes, the price for the machine is negotiable.
