| Name: | Double Stations Polyethylene Screw 100mm | Applicable Material: | HDPE + HDPE |
|---|---|---|---|
| Layer: | Two | Head: | Four Head |
| PLC: | B&R | Product: | Chemical Bottle |
| High Light: | Screw Type Blowing Bottle Machine,Double Stations Polyethylene Blowing Bottle Machine,100mm Extrusion Blow Molding Machine |
||

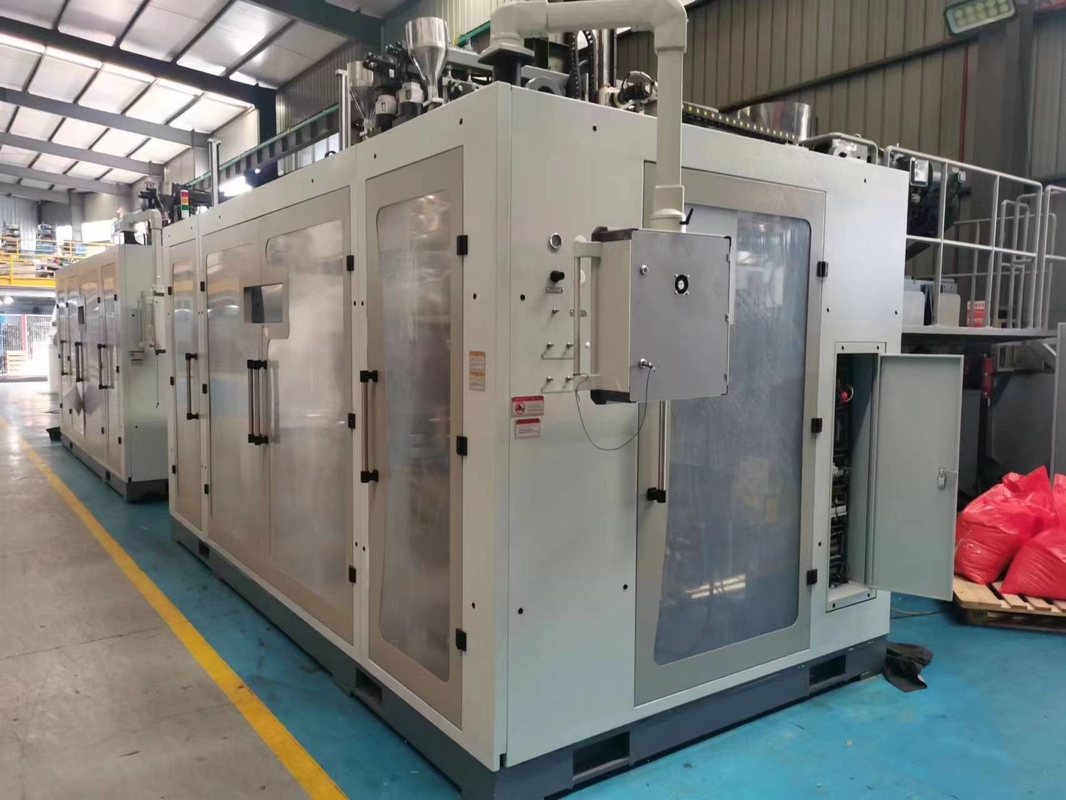

Double Stations Polyethylene Blowing Bottle Machine Screw 100mm
Introduction:
MP100FD is specifically designed for making bottles from 20L bottle. It is hydraulic driven with accrate eletrical control system. MP100FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP100FD is updated to be one of the most reliable and popular model in the world.
Advantage:
Adopt fast response PLC from Taiwan-techmation
Seperately control for 3 extrusin unit
Layer structure from outer to inner is :PE/REPE/PE
EACH LAYER THICKNESS IS CONTROLLED INDIVIDUALLY
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
Check daily
1) Wire of heat ring is broken or not.
2) Temperature control “0” positation.
3) All electric switches, esp. switches of safety door and emergency stop.
4) Fixing screw of mould.
5) Recycling supply of cooling water.
6) Sensitivity and correctness of pressure meter.
7) Oil height.
