Double Station HDPE Extrusion Blow Molding Machine MP55D

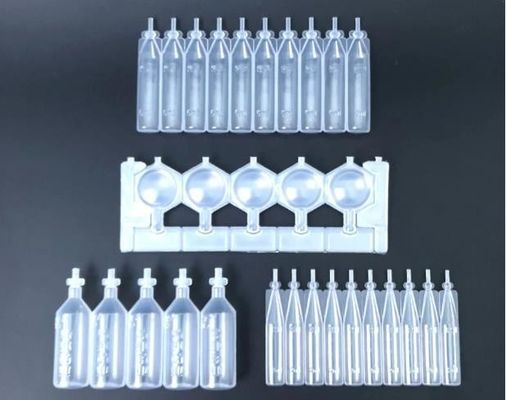

HDPE Extrusion Blow Molding Machine MP55D for Medical Water Bottle

Introduction:

MP55D is specifically designed for making bottles from 5ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.

Advantages:

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY

Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.

The following should be abided by in order to keep safe operation, machine’s performance and service life.

3.2.1 Safety rules should be followed in operating the machine:

1) Do not start the machine before knowing its features and operating procedure .

2) Before each operation, check the reliability of safety switches and safety doors. Do not start machine before confirming all safety devices are perfect and effective.

3) Do not randomly touch moving, heating and energizing parts during running. Do not stretch out into mold clamping device. Do not stretch out head. Stop oil pump motor and switch off power in repair. Be ware of hot material barrel!

4) Two personnels are forbidden to operate one machine at one time except in installing mould.

Specifications:

MP55D
Double station blow molder with horizontal linear mould shuttle
	Length:	2870mm
	Width:	2140mm
	Height:	2280mm
Key Data		MP55D
		mm
Linear mould stroke	A	380
Mould Width	B	360
Mould Length	C	300
Mould Thickness	D	130
Opening Stroke	E	220
Platen Daylight	D+E	350
Clamping Force		30kN
Centre Distance	2x2 fold	130
	2x3 fold	90
	2x4 fold	75
	2x5 fold	60
	2x6 fold	50
Extruder		φ55	φ60	φ65
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	55	60	65
Screw L/D Ratio	L/D	24	24	24
Energy Requirements
Extruder Inverter Power	kW	11	15	18.5
Extruder Moter Power	kW	11	15	18.5
Srew Heating Power	kW	5.85	9.4	12.3
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	7.5	7.5	7.5
Total Power of Machine	kW	33.34	40.92	47.29
Air Requirement approx	m3/min	0.8-1	0.8-1	0.8-1
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8
Cooling Requirements
Consumption Cooling Water	L/min	30	30	30
