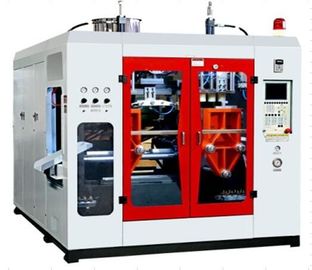

Fully Automatic HDPE Extrusion Blow Molding Machine For 10ml - 1L Bottle

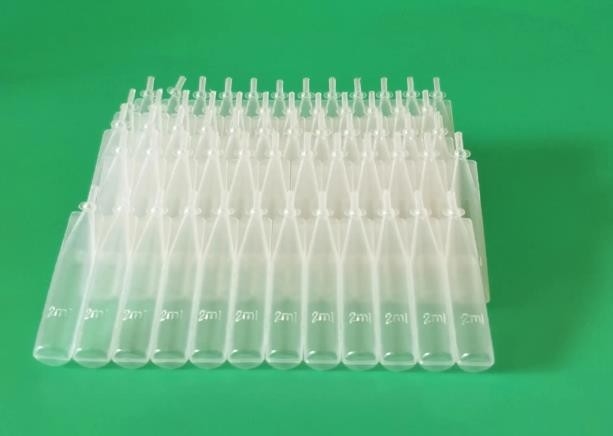

10ml-1L HDPE Extrusion Blow Molding Machine Fully Automatic MP55D for Eye Drop Bottle

Introduction:

MP55D is specifically designed for making bottles from 5ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.

Advantages:

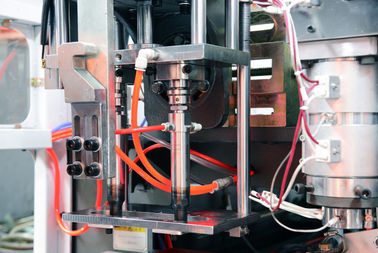

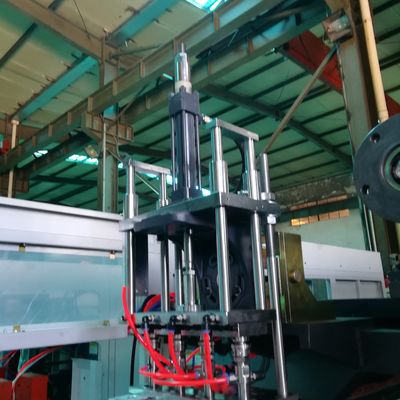

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY

Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.

CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.

Cylinder of carriage, cylinder of clamping, cylinder of blow pin, please be according to chapter one’s figure to change parts and all seal rings

Step: 1. unscrew hexagon nut, take down 4 pcs tie bars; 2.remove barrel cover and clamp cover, take down barrel, take out piston rod. check which part is broken or seal ring is broken. Then change. After finishing, please install clamp cover and barrel cover, put barrel, then put piston rod, please note of sealing between barrel and barrel cover, the balance between piston rod and barrel. Then install tie bar, after finishing, please screw the nut and screw down.

Specifications:

MP55D
Double station blow molder with horizontal linear mould shuttle
	Length:	2870mm
	Width:	2140mm
	Height:	2280mm
Key Data		MP55D
		mm
Linear mould stroke	A	380
Mould Width	B	360
Mould Length	C	300
Mould Thickness	D	130
Opening Stroke	E	220
Platen Daylight	D+E	350
Clamping Force		30kN
Centre Distance	2x2 fold	130
	2x3 fold	90
	2x4 fold	75
	2x5 fold	60
	2x6 fold	50
Extruder		φ55	φ60	φ65
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	55	60	65
Screw L/D Ratio	L/D	24	24	24
Energy Requirements
Extruder Inverter Power	kW	11	15	18.5
Extruder Moter Power	kW	11	15	18.5
Srew Heating Power	kW	5.85	9.4	12.3
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	7.5	7.5	7.5
Total Power of Machine	kW	33.34	40.92	47.29
Air Requirement approx	m3/min	0.8-1	0.8-1	0.8-1
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8
Cooling Requirements
Consumption Cooling Water	L/min	30	30	30
