Product Details:
Payment & Shipping Terms:
|
| Prodcut Capacity: | Customize Size | Size: | 5L |
|---|---|---|---|

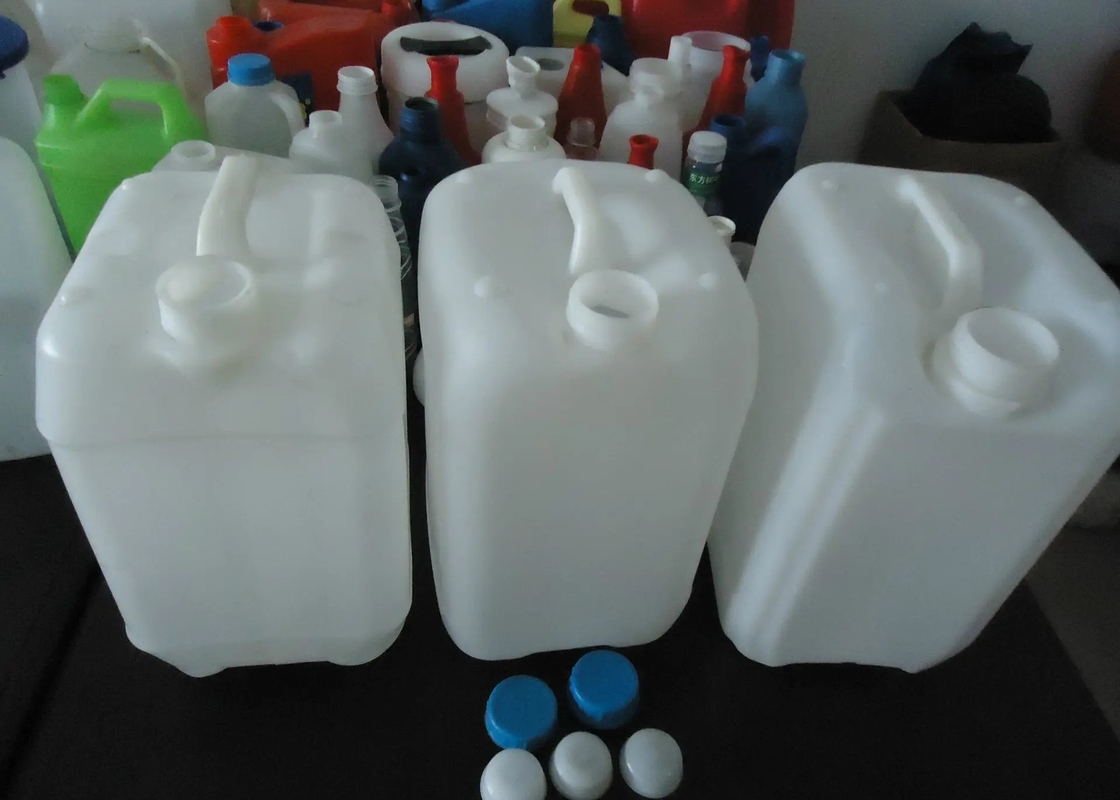

| Product: | Plastic Water Bucket | Station: | Double |
| Die Head: | Single Head | Type: | Toggle Clamping System |
| High Light: | Plastic Water Bucket Extrusion Molding Machine,Toggle Clamping System Plastic Blowing Machine,Single Head Extrusion Blow Molding Machine |
||

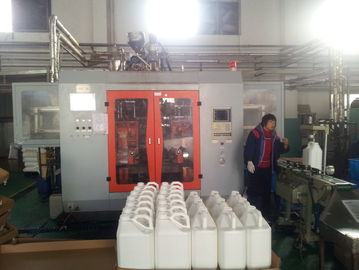

China Meper Toggle Clamping System Custom Blow Molding Machine MP70FD for plastic water bucket
Brief introduction

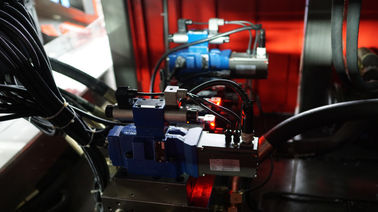

MP70FD Adopt hydraulic system drive,linear transducer movement for carriage up and down,fully automatic lubrication system with self-detector function.This model is popular use for small products below 5L.
Advantage:

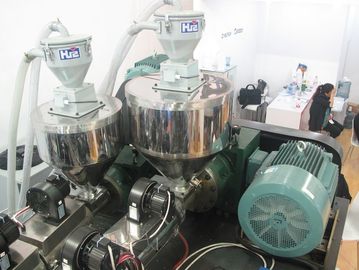

1. Most important for a good EBM machine is the action system and the extrusion system.
2. Heavy and stong structure,make sure machine works more faster and stable.
3. Special protection for the machine and people
4. toggle mold locking mechanism guarantees big clamping force, no expansion of mold, no increase of high pressure air consumption.
5. Double-mold, double-blowing technique guarantees the product stability in the process of hot-filling.
6. High-performance chain driven by servo motor ensures stable, fast and accurate operation.
Machine specification:
| Parameters | MP70FD |
| Material | PE PP PVC PA… |
| Max container capacity | 5L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.6x2.2x2.36m |
| Total weight | 5.5ton |
| Clamping force | 90kN |
| Platen openning stokes | 180-480mm |
| Toggle stokes | 450mm |
| Max mould size(WxH) | 430x400mm |
| Screw diameter | 70mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 70kg/h |
| Screw heating zone | 3 zone |
| Screw heating power | 14.1kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 18.5kw |
| Die head heating zone | 3 zone |
| Power of die heating | 6.5kw |
| Total power of machine | 49.14kw |
| Power of oil pump motor | 9.5kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 28kw |
| Consumption compression air | 1.2m³/min |
| Consumption cooling water | 40L/min |
