|Container Capacity:||50ML-5L||Applicable Material:||HDPE LDPE PP PETG PVC PC PA EVOH EPET|
|Product:||Plastic Outdoor Kettle||Station:||Double Station|
|Speed:||High||Machine Type:||Tie Bar Type -D Type|
Outdoor Kettle Blow Molding Machine,
MP70D-2 Plastic Bottle Blow Molding Machine,
LDPE Bottle Blow Molding Machine

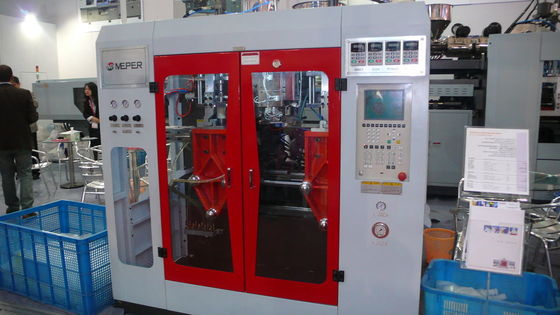

High Speed Double Staton Plastic Bottle Blow Molding Machine MP70D-2 For Plastic Outdoor Kettle
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system. MP70D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70D is updated to be one of the most reliable and popular model in the world.
|MP70D Double station blow molder with horizontal linear mould shuttle|
|Linear mould stroke||A||450|
|Dry Cycle||7 sec.|
|Centre Distance||2x2 fold||160|
|Screw L/D Ratio||L/D||24||24||24|
|Extruder Inverter Power||kW||18.5||22||30|
|Extruder Moter Power||kW||18.5||22||30|
|Srew Heating Power||kW||12.7||14.4||15.85|
|Oil pump Motor Power||kW||9.5||9.5||9.5|
|Total Power of Machine||kW||49.14||54.34||63.79|
|Air Requirement approx||m3/min||1.2||1.2||1.2|
|Air Working Pressure||Mpa||0.6-0.8||0.6-0.8||0.6-0.8|
|Consumption Cooling Water||L/min||40||40||40|
Mould clamping device
The function of mould clamping device is to ensure that forming mould can be closed and opened reliably.
Mould clamping device adopts vertical compression, three pilot post, big beam arm,linear guider, cylinder spindle and double working position. Mould moves fast and stably.
It is mainly made up of front plate, middle plate, back plate, synchronous gear rack,puller bolt, mould clamping oil cyliner ,carriger oil cylinder and carriger seat.(for Mp40 model,it adopts two mould platen called left platen and right platen)
When pressurized oil enters mould clamping oil cylinder, piston begins move forward and forces middle plate to move. The connecting synchronous gear rack leads back plate and front plate to move backwards. When mould parting lines meet, pressured oil makes mould close tightly.
