Container Capacity: | 1L | Applicable Material: | HDPE + EVOH+AD |
---|---|---|---|
Layer: | FOUR | Head: | TWO |
PLC: | Techmation | Product: | Agricultural Chemical Bottle |
Name: | Agricultural Chemical 1L Plastic Bottle Blow Molding Machine For Hdpe | Keyword: | Hdpe Bottle Blowing Machine |
Highlight: | 1l plastic bottle blow molding machine,hdpe plastic bottle blow molding machine,1l hdpe bottle blowing machine |

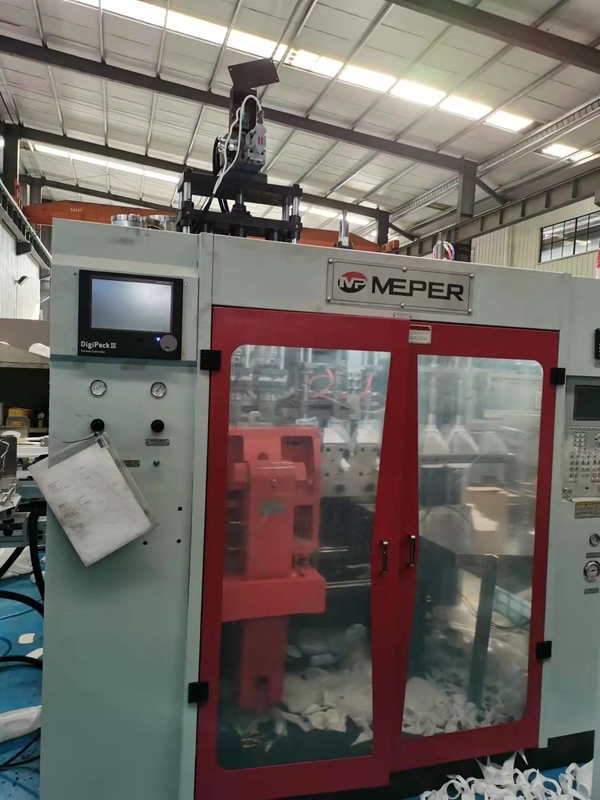

two heads Blow Molding machines M80FD
Introduction:
MP80FD is specifically designed for making bottles from 1L bottle. It is hydraulic driven with accrate eletrical control system. MP80FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80FD is updated to be one of the most reliable and popular model in the world.
CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE | ||
COMPONENT | BRAND | ORIGIN |
electric system | ||
controller(computer) | TECHMATION | TAIWAN |
interface | TECHMATION | TAIWAN |
contactor | LS | KOREA |
linear transducer | NOVETECHINIC | GERMANY |
stroke switch | SCHNEIDER | GERMANY |
inverter | DELTA | TAIWAN |
servo system | TECHMATION | TAIWAN |
extruder motor | ZHONGDA | CHINA |
screw and barrel | JINGXIN | CHINA |
hydraulic system | ||
oil pump | VICKERS | USA |
hydraulic valve | VICKERS | USA |
proportional valve | HNC | TAIWAN |
seal ring | NOK | JAPAN |
pneumatic system | ||
air cylinder | ARK | KOREA |
pneumatic valve | REXROTH | GERMANY |
Parameters | MP80FD |
Material | PE PP PVC PA… |
Max container capacity | 10L |
Number of die | 1,2,3,4,6 |
Machine Dimension(LxWxH) | 3.3x5.5x2.8m |
Total weight | 12ton |
Clamping force | 150kN |
Platen openning stokes | 240-620mm |
Toggle stokes | 600mm |
Max mould size(WxH) | 550x430mm |
Screw diameter | 80mm |
Screw L/D ratio | 24 L/D |
(HDPE) Plasticizing capacity | 108kg/h |
Screw heating zone | 4 zone |
Screw heating power | 15.6kw |
Screw fan power | 0.14kw |
Extrusion motor power | 30kw |
Die head heating zone | 8 zone |
Power of die heating | 10.3kw |
Total power of machine | 92kw |
Power of oil pump motor | 31kw |
Air pressure | 0.6-0.8 Mpa |
Average energy consumption | 61kw |
Consumption compression air | 1.2m³/min |
Consumption cooling water | 80L/min |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
