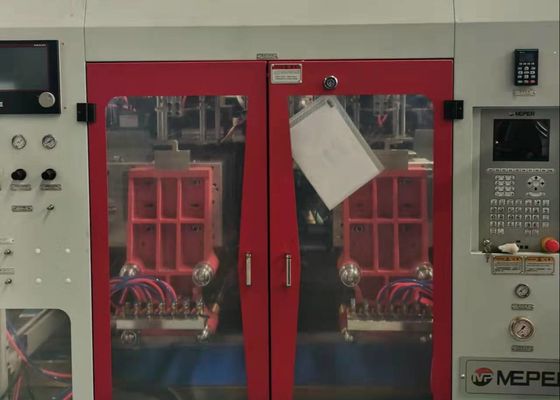

Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle

Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle
Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle

Large Image :  Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP80FD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation
Packaging Details: Standard export package, wooden pallet(standard) wooden case(optional)
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Container Capacity: 1L Name: Four Layer Hydraulic Driven Extrusion Blow Molding Machine For 1l Bottle
Layer: FOUR Head: TWO
PLC: Techmation Product: Agricultural Chemical Bottle
High Light:

hydraulic driven extrusion blow molding machine

,

1l bottle extrusion blow molding machine

,

1l hdpe bottle manufacturing machine

two heads Blow Molding machines M80FD

Introduction:
MP80FD is specifically designed for making bottles from 1L bottle. It is hydraulic driven with accrate eletrical control system. MP80FD has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80FD is updated to be one of the most reliable and popular model in the world.


CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE
COMPONENT BRAND ORIGIN
electric system
controller(computer) TECHMATION TAIWAN
interface TECHMATION TAIWAN
contactor LS KOREA
linear transducer NOVETECHINIC GERMANY
stroke switch SCHNEIDER GERMANY
inverter DELTA TAIWAN
servo system TECHMATION TAIWAN
extruder motor ZHONGDA CHINA
screw and barrel JINGXIN CHINA
hydraulic system
oil pump VICKERS USA
hydraulic valve VICKERS USA
proportional valve HNC TAIWAN
seal ring NOK JAPAN
pneumatic system
air cylinder ARK KOREA
pneumatic valve REXROTH GERMANY




Parameters MP80FD
Material PE PP PVC PA…
Max container capacity 10L
Number of die 1,2,3,4,6
Machine Dimension(LxWxH) 3.3x5.5x2.8m
Total weight 12ton
Clamping force 150kN
Platen openning stokes 240-620mm
Toggle stokes 600mm
Max mould size(WxH) 550x430mm
Screw diameter 80mm
Screw L/D ratio 24 L/D
(HDPE) Plasticizing capacity 108kg/h
Screw heating zone 4 zone
Screw heating power 15.6kw
Screw fan power 0.14kw
Extrusion motor power 30kw
Die head heating zone 8 zone
Power of die heating 10.3kw
Total power of machine 92kw
Power of oil pump motor 31kw
Air pressure 0.6-0.8 Mpa
Average energy consumption 61kw
Consumption compression air 1.2m³/min
Consumption cooling water 80L/min
