Product Details:
Payment & Shipping Terms:
|
| Type: | Hopper Dryer | Feature: | Dry The Raw Material |
|---|---|---|---|
| Product: | Hopper Dryer | Capacity: | 24 ～400kg |
| Material: | S.S Steel Or Steel | Advantage: | Low-cost |
| Highlight: | plastic ancillary machine,auxiliary equipment for plastics processing |
||

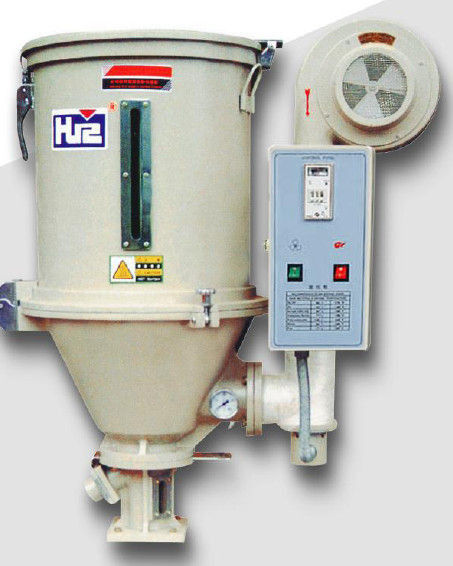

Hopper dryer to dry the raw material before loading to the hopper
Brief introduction
HHD series hopper dryers offer an effer an effective and low-cost method for plastic material drying,Hot air is used o dry wet materials that due to moisture absorption during packagingm, transportation ,and recycling cycles.They can be directly mounted on the moulding machine for quick drying and space saving.For this series .hot air blows evenly from bottom to the top of the hopper with capacity ranging from 12 ～1000kg.
Specification:
| Model | HHD-25E | ||||
| Material loading capacity(kg) | 25 | ||||
| heater power(kW) | 2.7 | ||||
| blower power(W) | 100 | ||||
| Diameter(mm) | 350 | ||||
| Height(MM) | 970 | ||||
| Applicable injectors(oz) | 3—5 | ||||
| Weight(kg) | 36 | ||||
| Extemal size LxWxH(mm) | 830*640*890 | ||||
| suitable injection machine | 50-70Ton | ||||
| Model | HHD-50E | ||||
| Material loading capacity(kg) | 50 | ||||
| heater power(kW) | 3.9 | ||||
| blower power(W) | 140 | ||||
| Diameter(mm) | 430 | ||||
| Height(MM) | 1140 | ||||
| Applicable injectors(oz) | 5—8 | ||||
| Weight(kg) | 53 | ||||
| Extemal size LxWxH(mm) | 980*650*1010 | ||||
| suitable injection machine | 100-130Ton | ||||
| Model | HHD-75E | ||||
| Material loading capacity(kg) | 75 | ||||
| heater power(kW) | 5 | ||||
| blower power(W) | 140 | ||||
| Diameter(mm) | 460 | ||||
| Height(MM) | 1300 | ||||
| Applicable injectors(oz) | 8—10 | ||||
| Weight(kg) | 56 | ||||
| Extemal size LxWxH(mm) | 1040*680*1150 | ||||
| suitable injection machine | 170-220Ton | ||||
| Model | HHD-100E | ||||
| Material loading capacity(kg) | 100 | ||||
| heater power(kW) | 7.8 | ||||
| blower power(W) | 350 | ||||
| Diameter(mm) | 550 | ||||
| Height(MM) | 1390 | ||||
| Applicable injectors(oz) | 10—30 | ||||
| Weight(kg) | 85 | ||||
| Extemal size LxWxH(mm) | 1180*700*1410 | ||||
| suitable injection machine | 280-350Ton | ||||
| Model | HHD-150E | ||||
| Material loading capacity(kg) | 150 | ||||
| heater power(kW) | 8.9 | ||||
| blower power(W) | 350 | ||||
| Diameter(mm) | 630 | ||||
| Height(MM) | 1470 | ||||
| Applicable injectors(oz) | 20—30 | ||||
| Weight(kg) | 85 | ||||
| Extemal size LxWxH(mm) | 1180*700*1410 | ||||
| suitable injection machine | 380-400Ton | ||||
| Model | HHD-200E | ||||
| Material loading capacity(kg) | 200 | ||||
| heater power(kW) | 10 | ||||
| blower power(W) | 750 | ||||
| Diameter(mm) | 700 | ||||
| Height(MM) | 1660 | ||||
| Applicable injectors(oz) | 30—60 | ||||
| Weight(kg) | 154 | ||||
| Extemal size LxWxH(mm) | 1390*900*1600 | ||||
| suitable injection machine | 500-650Ton | ||||
| Model | HHD-300ET | ||||
| Material loading capacity(kg) | 300 | ||||
| heater power(kW) | 15 | ||||
| blower power(W) | 750 | ||||
| Diameter(mm) | 760 | ||||
| Height(MM) | 1850 | ||||
| Applicable injectors(oz) | ＞60 | ||||
| Weight(kg) | 215 | ||||
| Extemal size LxWxH(mm) | 1500*1060*1760 | ||||
| suitable injection machine | 700-1000Ton | ||||
| Model | HHD-400ET | ||||
| Material loading capacity(kg) | 400 | ||||
| heater power(kW) | 20 | ||||
| blower power(W) | 750 | ||||
| Diameter(mm) | 840 | ||||
| Height(MM) | 1990 | ||||
| Applicable injectors(oz) | ＞60 | ||||
| Weight(kg) | 265 | ||||
| Extemal size LxWxH(mm) | 1500*1100*1950 | ||||
| suitable injection machine | 1000-1600Ton | ||||
| Model | HHD-1000ET | ||||
| Material loading capacity(kg) | 1000 | ||||
| heater power(kW) | 32 | ||||
| blower power(W) | 1000 | ||||
| Diameter(mm) | 960 | ||||
| Height(MM) | 2920 | ||||
| Applicable injectors(oz) | ＞60 | ||||
| Weight(kg) | 320 | ||||
| Extemal size LxWxH(mm) | 1830*1320*2880 | ||||
| suitable injection machine | 1800Ton | ||||
