|Product:||Vegetable Oil Bottle||Applicable Material:||HDPE LDPE PP PETG PVC PC PA EVOH EPET|
|Fully Automatic:||Yes||IML:||In Mold Labeling|
extrusion blow molding machine,
water bottle blow molding machine

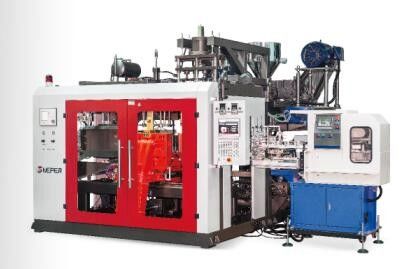

HDPE Multi-layer Multi-cavity Fully Automatic Extrusion Blow Moulding Machine MP90FS IML for vegetable oil bottle
MP90FS IML is specifically designed for making bottles from 100ml up to maximum 20L. It is hydraulic driven with accrate eletrical control system. MP90FS IML has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP90FS IML is updated to be one of the most reliable and popular model in the world.
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-F Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP90FS is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
|Material||PE PP PVC PA…|
|Max container capacity||10L|
|Number of die||1,2,3,4,6,8|
|Platen openning stokes||240-560mm|
|Max mould size(WxH)||1100x430mm|
|Screw L/D ratio||24 L/D|
|(HDPE) Plasticizing capacity||150kg/h|
|Screw heating zone||4 zone|
|Screw heating power||16.5kw|
|Screw fan power||0.14kw|
|Extrusion motor power||45kw|
|Die head heating zone||16 zone|
|Power of die heating||21kw|
|Total power of machine||160kw|
|Power of oil pump motor||31kw|
|Air pressure||0.6-0.8 Mpa|
|Average energy consumption||80kw|
|Consumption compression air||1.5m³/min|
|Consumption cooling water||150L/min|
