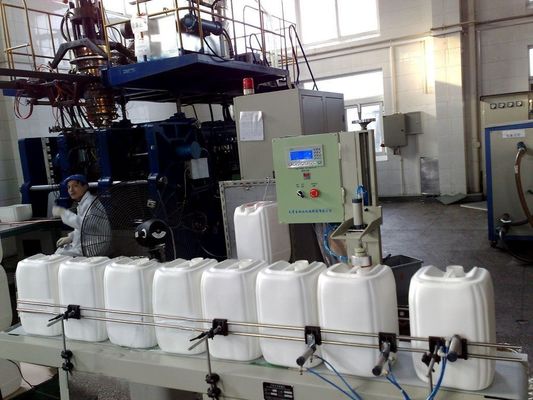

Plastic bottle Leak Testing Machine

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Plastic bottle Leak Testing Machine

Product Details:
Place of Origin: China
Brand Name: Meper
Certification: ISO,CE
Model Number: MP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation
Packaging Details: Standard Export Package
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Characteristics: Automatic Leak Testing Machine Applications:: Structure Accurate Detecting
Container Volume:: 200ml-5L Custom: Available
Testing Time: 2-15seconds/piece Speed: 30000pcs/hr
High Light:

automatic packaging machine

,

packaging auxiliary equipment

Automatic leak testing machine with strong structure accurate detecting the leakage​



Brief introduction:

Hollow container Leak Testing Machine is developed and designed to satisfy the demands of container producer for production line,high quality control customers. It can figure out all the tiny holes in the hollow containers without destroying the hollow containers, using the microcomputer pressure-difference analysis principle, which can test various kinds of containers.

It is popular use in food packing,medical packing,chemical,spary ccontainer,any material hollow products and ultrasonic welding production line.

It can test from 5ml-300L,can be test different product under special design order.

The fastest testing speed is 30000pcs/hr using a special bottle management device.



Parameters:



(1). Overall size: 1600×600×1550 mm(length ×width ×height)

(2). Power: 220V,50-60Hz (special voltage need add 10% in price)

(3). Air pressure requirement: 5-7kgf/cm2

(4). Testing time: 2-15seconds/piece(according to bottle size)

(5). Power requirement : 150W

(6). Suitable container volume:200ml-5L

(7). Suitable height:50mm-400mm

(8). Suitable thickness:20mm-200mm

(9). Quantity of testing head: 1(one)

(10) . Speed of the transportation tie:0-15(rice/sec)



main configuration



Item Brand & Original
PLC /controller Mitsubishi-Japan
Monitor/screen Xunjie-China
Fiber Laser sensor Autonics-korea
Pressure sensor Autonics-Korea/SMC-Japan
Pneumatical valve Airtac-Taiwan



Advanage:

  • Quantifiable leak test

  • Calibration to ISO9000 etc

  • Fast clean and dry test

  • Easily incorporated into automatic or manual line

  • Automated pass/fail limits

  • Automatic pass/fail marking

  • Data outputs for SPC analysis
