Product Details:
Payment & Shipping Terms:
|
| Container Capacity: | 10L | Applicable Material: | HDPE LDPE PP PETG PVC PC PA EVOH EPET |
|---|---|---|---|
| Feature: | Fully Automatic | Speed: | Faster Output |
| IML: | In Mold Labeling | Product: | Chemical Packaging Bottle |
| High Light: | water bottle blow molding machine,blow molding device |
||

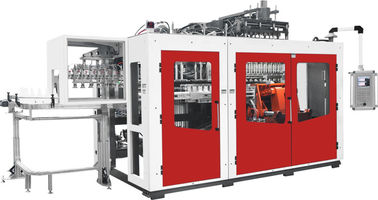

8 head Fully Automatic Extrusion Blow Moulding Machine MP90FS IML for chemical packaging bottle
Advantages:

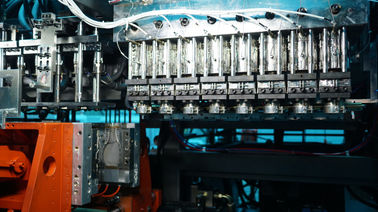

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.

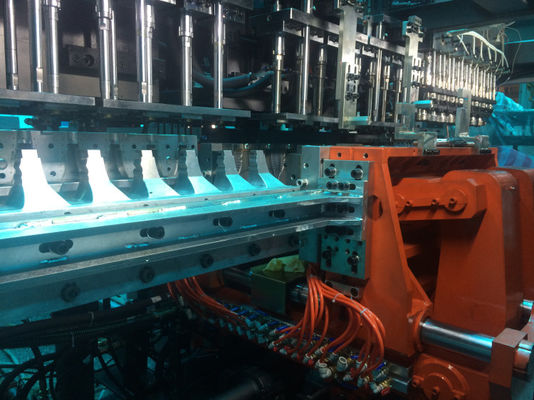

CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-FD Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP90FS IML is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
| Parameters | MP90FS |
| Material | PE PP PVC PA… |
| Max container capacity | 10L |
| Number of die | 1,2,3,4,6,8 |
| Machine Dimension(LxWxH) | 5x5.9x3.1m |
| Total weight | 12ton |
| Clamping force | 350kN |
| Platen openning stokes | 240-560mm |
| Toggle stokes | 1150mm |
| Max mould size(WxH) | 1100x430mm |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 150kg/h |
| Screw heating zone | 4 zone |
| Screw heating power | 16.5kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 45kw |
| Die head heating zone | 16 zone |
| Power of die heating | 21kw |
| Total power of machine | 160kw |
| Power of oil pump motor | 31kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 80kw |
| Consumption compression air | 1.5m³/min |
| Consumption cooling water | 150L/min |
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
