|Container Capacity:||5ml-1L||Applicable Material:||PC|
|Multi-layer:||2 Layer||Multi-cavity:||3 Head|
|Product:||Water Bottle||PLC:||Techmation O|
high speed blow molding machine,
custom blow molding machine
PC water bottle Plastic Blow Molding Machine 2 Layer material Thriple head
CO-EXTRUSION BLOW MOLDING MACHINE FOR MULTI-LAYER BOTTLES
Applicable for single and double station with single to multiple die heads for producing up to SIX-LAYER CONTAINERS (2 TO 6-LAYER CO-EXTRUSION), such as chemical bottles, catchup bottles, or cosmetic bottles.
2Layer material will be:
You can decrate your bottle with outer-layer (materbatch),inner layer (virgin or recycle material) to save cost and strength the body.

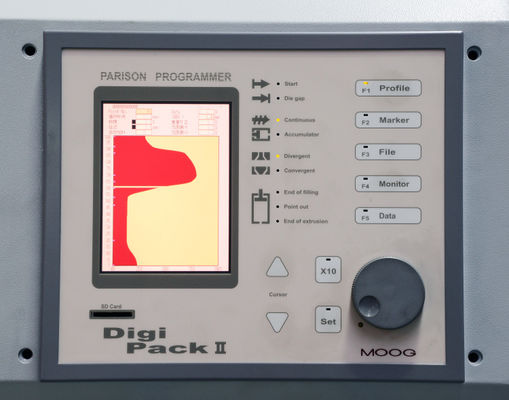

Piling out system adopting high performance transducer to drive ,saving power by above 30%,can be equipped with 100points wall ,thickness control ,Adopting foreign famous brand MOOG, improving the uniformity of the finished products ,lowering the weight of the finished products ,Flow and pre-sure proportional control valve. consuming less power ,high output ,of high performance price Ratio.
With self-functioned and stable PLC control system ,as well as the integrative of the machine ,electric devices and hydraulic digital controlled and temperature control of PID have been achieved ,The equipment’s operation speed and stability have been greatly improved ,Friendly operational panel ,easy, convenient
Shaft insertion structure can work with many models of machines with many die head ,of standardized design ,easy to adjust ,accurate of body separate shaft head design ,can be replaced easily ,high quality products
Center distance introduction:
Double head standard Center distance:140,85,110,125mm as option)
Thriple head standard center distance:80mm
Four head standard center distance:80mm
MP55D is specifically designed for making bottles from 5ml up to maximum 1L. It is hydraulic driven with accrate eletrical control system. MP55D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP55D is updated to be one of the most reliable and popular model in the world.
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-F Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP55F is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
|Double station blow molder with horizontal linear mould shuttle|
|Linear mould stroke||A||380|
|Centre Distance||2x2 fold||130|
|Screw L/D Ratio||L/D||24||24||24|
|Extruder Inverter Power||kW||11||15||18.5|
|Extruder Moter Power||kW||11||15||18.5|
|Srew Heating Power||kW||5.85||9.4||12.3|
|Oil pump Motor Power||kW||7.5||7.5||7.5|
|Total Power of Machine||kW||33.34||40.92||47.29|
|Air Requirement approx||m3/min||0.8-1||0.8-1||0.8-1|
|Air Working Pressure||Mpa||0.6-0.8||0.6-0.8||0.6-0.8|
|Consumption Cooling Water||L/min||30||30||30|
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
