1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot

1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot
1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot

Large Image :  1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP80D-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 ser
Price: Price negotiation
Packaging Details: wooden pallet(standard) , wooden case(optional)
Delivery Time: 15-60 work days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Detailed Product Description
Max Capacity: 2x1gallon Material: PP,PE
Station: Double Dry Cycle: 8 Sec.
Robot: Yes Product: PP PE Juice Bottle Or Milk Bottle
High Light:

blow molding equipment

,

plastic blow moulding machine

1 gallon PP PE juice bottle or milk bottle blow molding machine MP80D Fully Automatic with robot



Brief introduction:

Smallest machine to produce 1 gallon PP PE juice bottle milk bottle.

Double station,single head



Features:

  • Blow Pin Mandrel has the chill-water circulation up to the tip,fast shaping the bottle neck.
  • Linear carriage up down movement,more faster and stable
  • center lubrication system with self-detector manifoild,ensure the life of the mechnical parts
  • heavy structure,make the machine works more faster without any shake.
  • defleshing optional to remove up and buttom scrap material
  • scrap material convenyor is optional
  • Suitable for making plastic products from 5ml up to 2L.
  • Die Head is torpedo design with special flow channel for swift and complete mergence of plastic material inside and to provide better plasticized feature.
  • Single view strip head
  • Parison thickness micro control system is optional for product best weight and quality control
  • Die Mouth Extrusion Adjustment by 4-point adjustment,parison to be straight and view strip width and position stable.
  • High-melting Screw design by 38CrMoali material,Bimentallic aolly material as optional for recycle material.
  • electric-heated Hot Cutter for cutting the parison with micro adjustment ,more accurate in blowing and reduce the scrap material percentage.
  • Blow Pin up down is driven by poweful hydraulic,micro adjustable to center the to be exactly twist cup-off neck flash.
  • adopt festo exhausted valve,endrable and faster
  • thick platen design to reduce the parting line of the products

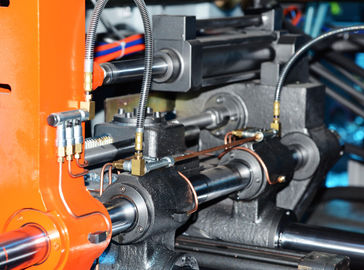

  • copper bush using for all the toggle parts,less friction heat comes and longer life
  • Air filter for water and oil,protect the pheumatic cylinder
  • Techmation PLC ,easy operating with 8 language optional:ENGLISH,SPANISH,CHINESE,FRANCE,RUSSIAN,TURKISH,PORTUGUESE

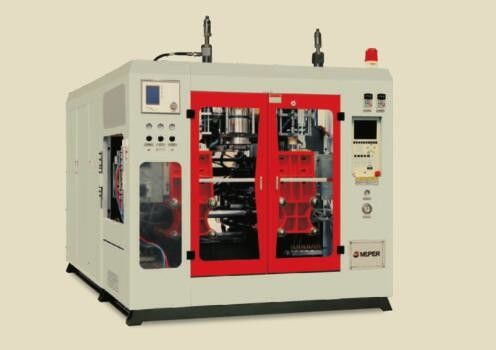

MP80D
Double station blow molder with horizontal linear mould shuttle

  Length: 4000mm
  Width: 2300mm
  Height 2500mm

Key Data   MP80D

1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 0

  mm
Linear mould stroke A 540
Mould Width B 520
Mould Length C 450
Mould Thickness D 230
Opening Stroke E 390

Platen daylight D+E 620
Clamping Force   150kN
Dry Cycle   8 sec.
Centre Distance 2x2 fold 200
  2x3 fold 140
  2x4 fold 110
  2x6 fold 70-75

Extruder   φ80 φ90
Screw Speed   0~65 0~65
Screw Diameter   80 90
Screw L/D Ratio   24 26

Energy Requirements
Extruder Inverter Power kW 30 45
Extruder Moter Power kW 30 45
Srew Heating Power kW 15.85 20
Fan Power kW 0.14X2 0.14X2
Oil pump Motor Power kW 15 15
Total Power of Machine kW 74.98 94.13
Air Requirement approx m3/min 1.5 1.5
Air Working Pressure Mpa 0.6-0.8 0.6-0.8

Cooling Requirements
Consumption Cooling Water L/min 40 40

OPTIONAL FUNCTION
COLD CUTTER
DEFLESHING SYSTEM(MACHINE SYSTEM+STEEL BACK PLATEN AND PNEUATIC CYLINDER)
HYDRAULIC DEFLESHING SYSTEM
BOTTLE ROTATION TOP CUT OFFLINE
BLADE NECK ROTATION CUTTING ONLINE INSTALLED/OFF LINE SEPARATE
HYDRAULIC FILTER
MECHANICAL FILTER
LEAK TEST MC ON/OFF LINE
ROBOT TAKE OUT
IML(IN MOULD LABELING SYSTEM)
2 YEAR SPARE PARTS WARRANTY
SCRAP MATERIAL CONVENYOR
BOTTLE CONVENYOR AROUND THE MACHINE OR CUSTOM DESIGN
POST COOLING SYSTEM
SIDE WATER REGUAR 12IN-12OUT WITH FLOW CONTROL
PARISON CONTROL SYSTEM MOOG 100PTS
SPECIAL SCREW AND BARREL FOR SPECIAL MATERIAL
SPECIAL PROGRA FOR SPECIAL PRODUCTS AND MOULD DESIGN

LOADING DEVICE,MASTER BATH MIXING DEVICE





1 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 11 Gallon PP PE Juice Bottle Blow Molding Equipment MP80D-1 Fully Automatic With Robot 2
