Multi Layer Bottle Blow Molding Machine , Blow Molding Equipment Energy Saving

Multi Layer Bottle Blow Molding Machine , Blow Molding Equipment Energy Saving
Multi Layer Bottle Blow Molding Machine , Blow Molding Equipment Energy Saving
video play

Large Image :  Multi Layer Bottle Blow Molding Machine , Blow Molding Equipment Energy Saving

Product Details:
Place of Origin: CHINA
Brand Name: MEPER
Certification: CE/ISO9001:2008
Model Number: MP70FS IML
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Price negotiation.
Packaging Details: Standard export package
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Detailed Product Description
Product: Lubricants Bottle Applicable Material: HDPE LDPE PP PETG PVC PC PA EVOH EPET
Multi-layer: Yes Fully Automatic: With IML
View Strip: Yes
High Light:

extrusion blow molding machine

,

blow molding device

Multi-layer Multi-cavity Fully Automatic Extrusion Blow Moulding Machine  IML for Lubricants bottle



Introduction:

MP70FS IML is specifically designed for making bottles from 600ml up to maximum 4L. It is hydraulic driven with accrate eletrical control system. MP70FS IML has single stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70FS IML is updated to be one of the most reliable and popular model in the world.



Advantages:

EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY

Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.



CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

All MEPER machines is equipped in standard with easy operational TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.



CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM

MP-F Toggle series employs direct-acting clamping system transferring the forces directly to the middle of both of the platens. And it adopts high precision linear guides to provide accurate platen and station movements.



ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM

MP55F is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.



MP70FS
Single station blow molder with horizontal linear mould shuttle
  Length: 3600mm
  Width: 2200mm
  Height 2360mm

Key Data   MP70FS Multi Layer Bottle Blow Molding Machine , Blow Molding Equipment Energy Saving 0
    mm
Linear mould stroke A 520
Mould Width B 500
Mould Length C 400
Mould Thickness D 250
Opening Stroke E 350

Platen daylight D+E 600
Clamping Force   75kN
Dry Cycle   7 sec.
Centre Distance 1x2 fold 160
  1x3 fold 120
  1x4 fold 100
  1x6 fold 60

Extruder   φ70 φ75 φ80
Screw Speed r/min 0~65 0~65 0~65
Screw Diameter mm 70 75 80
Screw L/D Ratio L/D 24 24 24

Energy Requirements
Extruder Inverter Power kW 18.5 22 30
Extruder Moter Power kW 18.5 22 30
Srew Heating Power kW 12.7 14.4 15.85
Fan Power kW 0.14X2 0.14X2 0.14X2
Oil pump Motor Power kW 15 15 15
Total Power of Machine kW 49.14 54.34 63.79
Air Requirement approx m3/min 1.2 1.2 1.2
Air Working Pressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8

Cooling Requirements
Consumption Cooling Water L/min 40 40 40



Standard Features:

Auto Lubrication

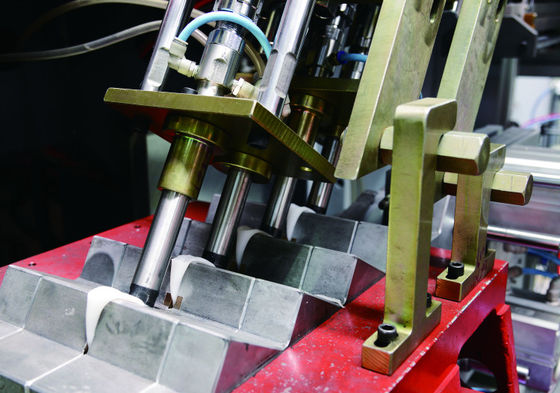

Water Cooled Modular Blow Pin

Hot Wire Cutting

Positioning Hole For Quick Mold Change

Adjustable Die head

Linear Transducer

FRL(Filter Regulator Lubricator) for Pneumatic

Proportional Hydraulic System fro better control

Swing and Adjustable Extrusion Platform
